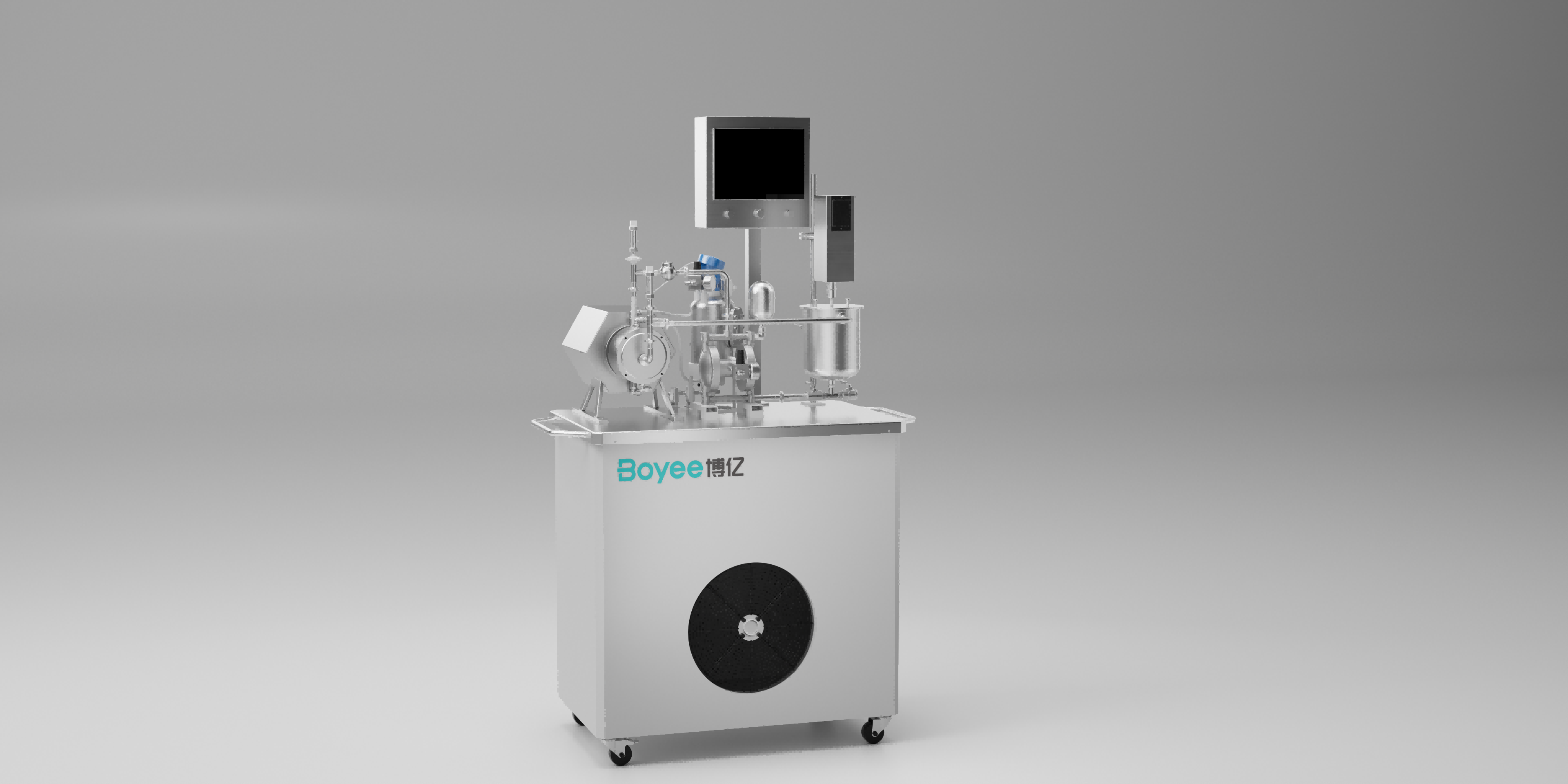

NMM Multi-functional Laboratory Bead mill
The NMM multifunction experimental machine supports scaling up the experimental data to the NMM series
mainframe using the same grinding system for mass production
Industry application
01
Meets the demands of high-complexity academic research
02
Meet the different grinding needs, to achieve a machine multi-purpose
03
Compatible with experimental requirements for a variety of novel material processes.
04
Facilitates scaling up of experimental data to production, enabling the transition from small to large scale
Fineness
Water/oily
Solvent system
Capacity
≤5000CPS
Viscosity
Grinding medium
NMM-1L
NMM-2L
NMM-1L
Equipment characteristics:
Innovative centrifugal
Material grinding and separating independent operation
suitable for low viscosity products
Gourmers can be minimal to 0.05mm
optional turbine and stick -based grinding system
more finely grinding and decentralized effects
Excellent cooling performance
Make a variety of materials meet personalized needs
Easy to operate and clean
1
Volume of grinding
chamber(L)
2.2
Grinder driving
power(kw)
0-2840
Decentralizer
speed(r/min)
0.1-2.0
Diameter of grinding
medium(mm)
120
Machine
weight(kg)
1000×580×1750
Overall
dimension(mm)
NMM-2L
Equipment characteristics:
Innovative centrifugal
Material grinding and separating independent operation
suitable for low viscosity products
Gourmers can be minimal to 0.05mm
optional turbine and stick -based grinding system
more finely grinding and decentralized effects
Excellent cooling performance
Make a variety of materials meet personalized needs
Easy to operate and clean
2
Volume of grinding
chamber(L)
4
Grinder driving
power(kw)
0-2840
Decentralizer
speed(r/min)
0.1-2.0
Diameter of grinding
medium(mm)
200
Machine
weight(kg)
1150×680×1850
Overall
dimension(mm)
The grinding system can choose turbine and rod pin according to the requirements:
Turbine rotor
Providing more gentle and meticulous grinding effect can effectively prevent excessive material dispersion and improve TurboMax patented Turbine(Turbo) structure grinding quality and accuracy
Rod pin rotor
The rod-pin rotor structure has high linear velocity, which can form continuous strong grinding in the grinding（Chamber), and the impact and grinding effect on the material is more intense
Zirconia
Polyurethane (PU)
